Premium Architectural Metal Products for Premium Buildings
Sunshades
Clover offers a wide array of custom extrusions to make your design different than the rest without the “custom” price. We offer:
  • Airfoils
  • Round, square and rectangular tubes
  • Flat bars
  • Perforated metals
We will provide stamped engineered calculations for any state included in our basic price.

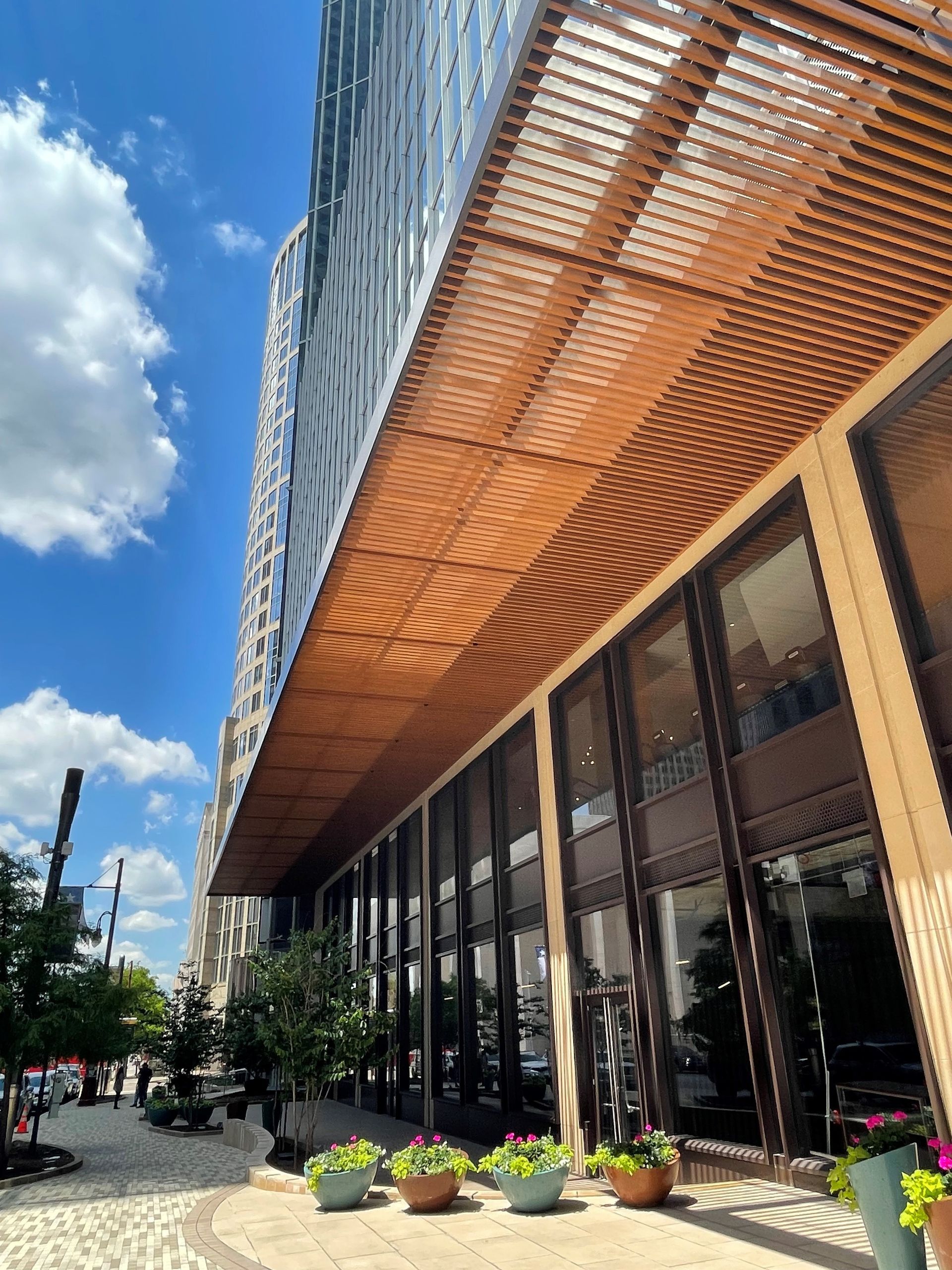

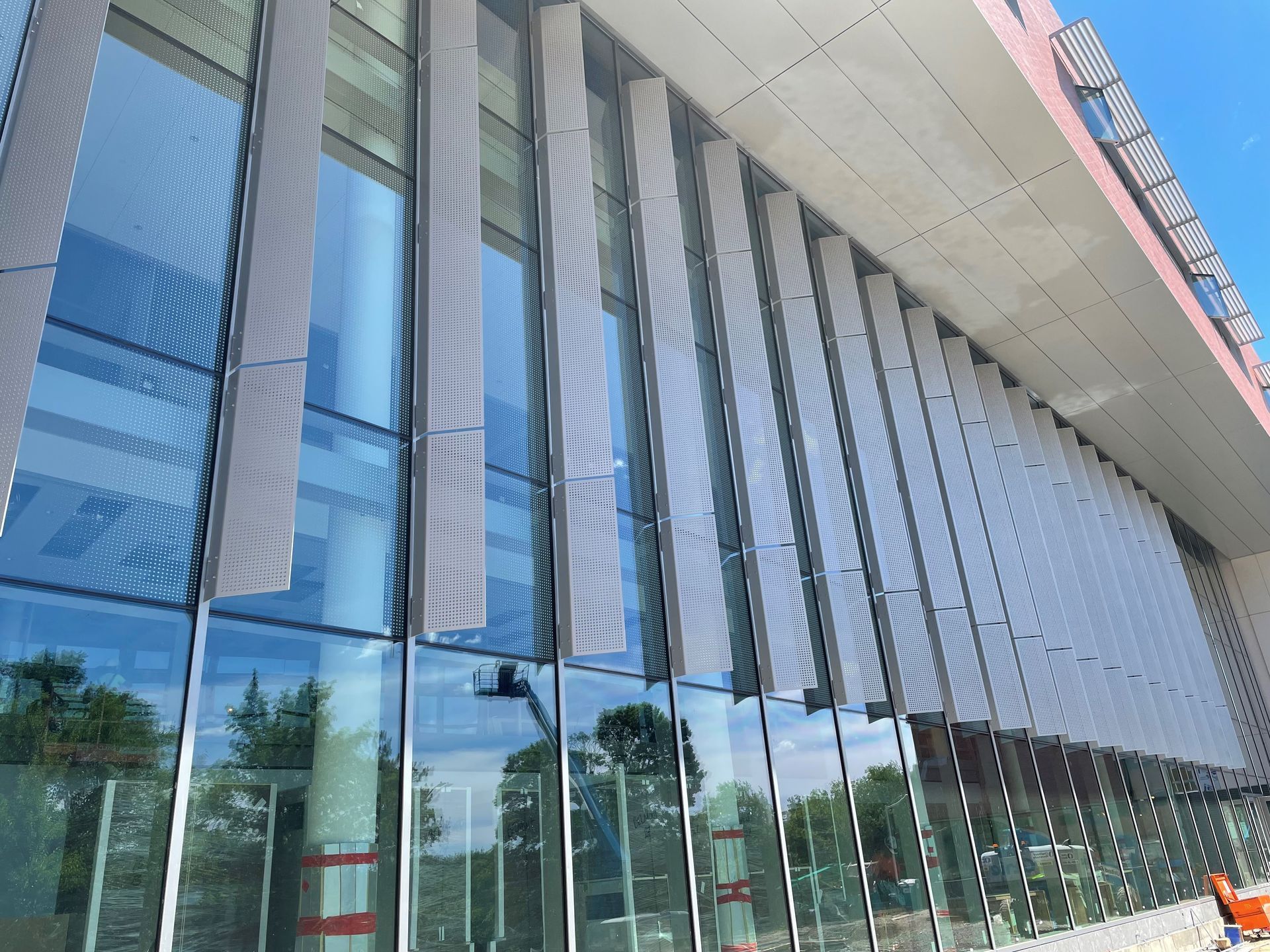

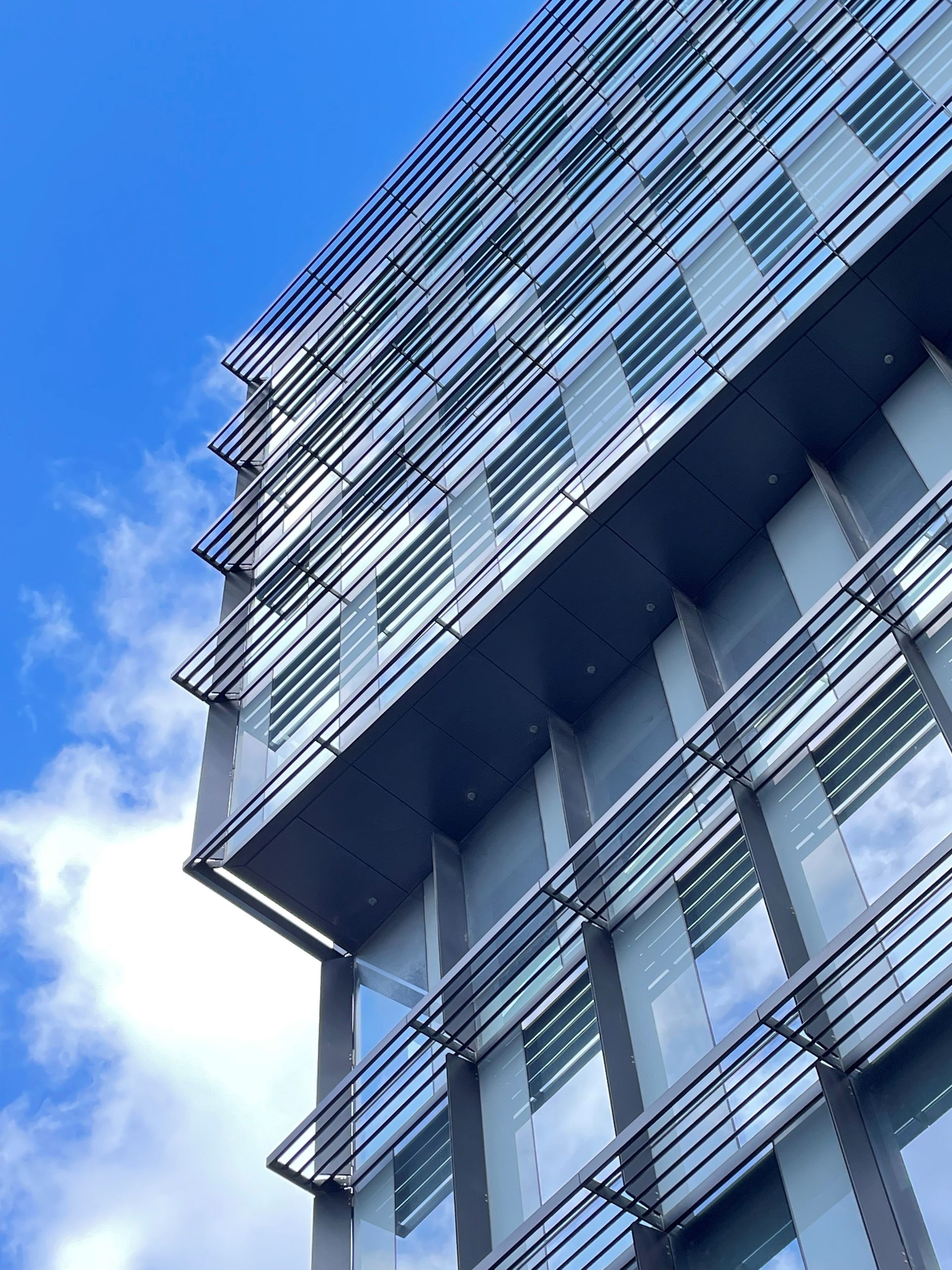

Clover offers a full line of sun control options. Our sunshades can be suited in a horizontal or vertical application. They typically attach to a curtain wall system, into the building structure, or as infill in a steel frame.
Clover will engineer and design the sunshade to the exact specifications and can also offer value engineering ideas.

The most common infill for sunshade systems are:

  • Airfoil blades ranging from 3″ to 20″
  • Square, rectangular or round tubes
  • Perforated metal
  • Flat bar
Sunshade finish options are:
  • Kynar paint with 2ct, mica, 3ct and metallic options
  • Clear, bronze and black anodized
  • Powder coat
  • Wood grain powder coat

Light shelves are an added option to help push the unblocked sun further into the building, thus cutting down on the lighting needed.




Grilles
Aluminum grilles are often used as a screening device for parking garages or to block unsightly equipment on a building. There are many patterns available and the bars can be tilted to any degree to offer added privacy.
Clover will offer an egg crate style grille made out of aluminum flat bar. Some of the design options are:

  • Square pattern
  • Rectangular
  • Tilted bars at any degree for added privacy
  • Recessed vertical bars for a continuous horizontal look

Other grille designs include using the following material:

  • Tubes
  • Perforated metal
  • Wire mesh
  • Airfoil blades



Door rails
Clover offers a full line of aluminum cladded door rails. Clover’s door rail is a (2) piece rail that is bolted together with a snap on cladding. We offer it in many different heights ranging from 3 5/8″ to 10”. It will be available for tempered glass thicknesses of 3/8”, 3/4”, 5/8” and 3/4”. They will come in heights of:

  • 3 5/8″
  • 4″
  • 6″
  • 10″
  • Custom heights available


Clover-D1 , 3-5/8″ Square Door Rails For 1/2″ & 3/4″ Glass Details View PDF, View DWG

Clover-D2 , 4″ Square Door Rails For 1/2″ & 3/4″ Glass Details View PDF, View DWG

Clover-D3, 6″ and 10″ Square Door Rails for 1/2″ Glass Details View PDF, View DWG

Clover-D4, 4″ Beveled Door Rail & Sidelite Rail For 1/2″ Glass Details View PDF, View DWG

Clover-D5, 4″ Beveled Door Rail & Sidelite Rail For 3/4″ Glass Details View PDF, View DWG

Clover D6 , 3-5/8″ Square & 4″ Square Sidelite Rails For 1/2″ Glass Details View PDF, View DWG




Glass door entrance systems
Clover offers sidelite rails in matching heights. These will have pre-vinyl on one side and push-in vinyl on the other side for easier glass installation.

Clover offers header bars that can be prepped for overhead closers and pivots from most door hardware suppliers. We stock:

  • 1 3/4″ x 4″
  • 1 3/4″ x 4 1/2″
  • 2″ x 6″
  • Head and sill channels – 1” x 1 1/4” x 1” and 1 3/4″ x 1 1/4” x 1 3/4″ for 1/2″ or 3/8″ glass and 1″ x 1 1/2″ and 1 3/4″ x 1 1/2″ x 1 3/4″ for 5/8″ or 3/4″ glass
Clover offers stainless steel finishes in both polished and satin.

We also offer clear anodized aluminum. Custom finishes available upon request.

Clover’s lead-time is built around the customers’ needs. We offer fast turnaround, which we know is paramount to our customers’ needs and successes.

Clover D7, Channels View PDF

Clover D8, Solid Header Bars View PDF


Closers
We do not stock any closers, but can prep for any including CRL and Dorma.

Cladding
Clover specializes in working with stainless steel, brass, bronze, muntz and other exotic finishes. The capabilities we have are:
  • Break shapes up to 12′
  • Cladded aluminum doors and storefront
  • Cladded curtain wall
  • 22 gauge to 1/8″ thick
  • Complex shapes
